1.5U 9 Way Cabinet PDU With Switch 125V 15A UL

Brand Name : Zion communication

Model Number : 1.5U 9 way Cabinet PDU

The Length of Size : 19 inch

Rated Current : 15A

Thickness of the Unit : 1.5U

Environment temperature : -40~ +70°C

Contact Now

1.5U 9 Way Cabinet PDU With Switch 125V, 15A UL

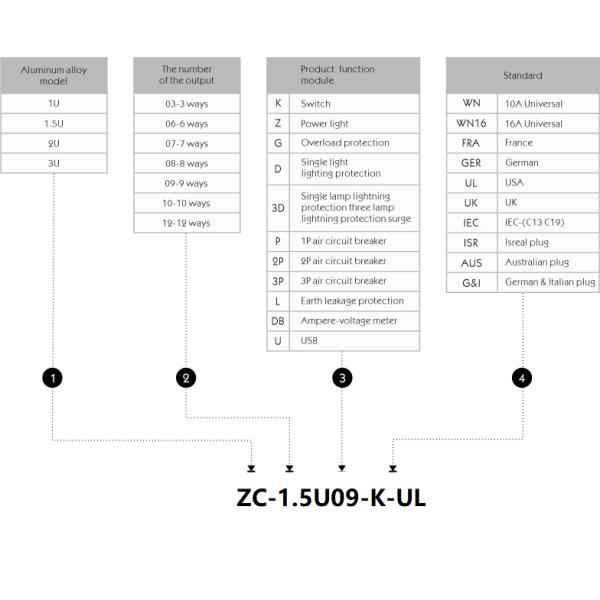

Zion Code and Description

Zion Code Zion Description
PDU-7245319(ZC-1.5U09-K-UL) 1.5U 9 way Cabinet PDU with Switch 125V,15A UL

1.5U 9 Way Cabinet PDU With Switch 125V 15A UL

Applications

● Banking, securities, universities, municipal administration, medical care, electric power and other fields

● Data Center; Enterprise networking

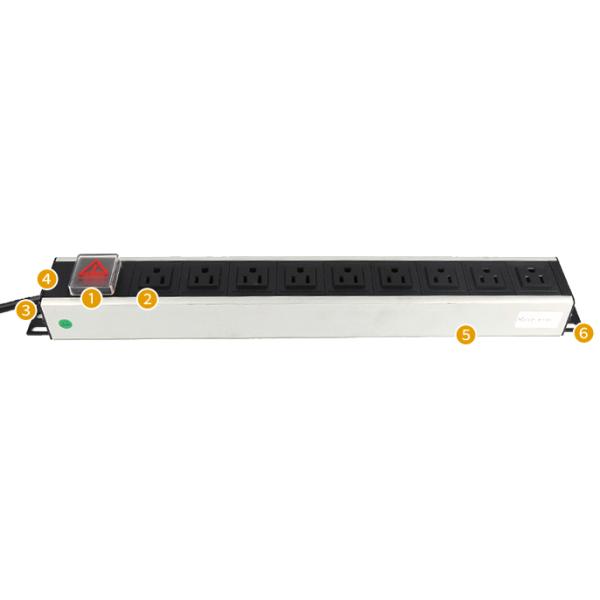

PDU BASIC MODULE OVERVIEW

1.5U 9 Way Cabinet PDU With Switch 125V 15A UL
● 1. Switch :Control the power on and off of the PDU to control the operation of the data system.
● 2. Functional Module:ALL functional modules are designed and manufactured in accordance with modularized structure. The product is equipped with supply socket modules compliant with different systems and standards in the world.It can satisfy the needs of clients in different regions or countries.
Components or parts subordinate to the power socket are made with phosphor bronze,which is famous for its elasticity,wear-resistance,diamagnetism and corrosion resistance.We ensure reliable contact and a single-pole pull-and-plug life at 5000 times and above.Our products also offer reliable operation,electric conductivity and connectivity with no loosening of strike.All functional modules are made with PCIABS plastic materials,and can achieve a thermal deformation temperature above 120 Celsius. Their fire-retardant characteristic is compliant with UL94-VO standard.
● 3. Cable Cord:Optional 10A 3*1.5mm2 cable, 16A 3*2.5mm2 cable, 25A 3*4mm2 cable, 32A 3*6mm2 cable.
● 4. LOGO Customize:Print LOGO according to requirement ODM/OEM.
● 5. Profile:The outer shell is made with highquality aluminum alloy to ensure high strength and heat radiation.
● 6. Installation:Designe d to be inst all ed in any orientation (360.)
● Power Input:Optional left-side input/right-side input, front input/rear input, single side single/doubel input, double side single/double input, and socket input.

Main product parameters

Countries Socket Type 15A UL The Length of Size 19 inch
Rated Current 15A Alternative filtration Highly efficient
Rated Voltage 125VAC Vendor Name Zion Communication /Hello Signal
Max. Continuous operating voltage UC 220VAC Incidental function Switch
Thickness of the Unit 1.5U Environment temperature -40~ +70°C
Output Module Number 9 way Material Uninflammable PC module UL94V-0, Aluminium alloy shell
OEM/ODM YES Fire resistance Up to UL 94V-0
Color Black Packing 1pc/plastic bag/inner box
25pcs/carton

Zion Communication’s Hot PDU types

Zion Code Name Code Zion Description
7245301 ZC-1U03-3P-WN 1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302 ZC-1U06-K-WN 1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303 ZC-1U06-K-3D-WN 1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304 ZC-1U08-K-G-WN 1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305 ZC-1U06-P-WN 1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306 ZC-1U06-K-D-U-WN 1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307 ZC-1U06-Z-P-WN 1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308 ZC-1U06-L-WN16 1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309 ZC-1U06-L-Z-WN16 1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310 ZC-1U08-K-G-WN16 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
7245311 ZC-1U03-K-WN16 1U 3 way Cabinet PDU with Switch 250V,16A Universal
7245312 ZC-1.5U06-L-WN16 1.5U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245313 ZC-1U12-Z-UK 1U 12 way Cabinet PDU with Power Light 250V,13A UK
7245314 ZC-1.5U06-k-G-D-UK 1.5U 6 way Cabinet PDU with Switch and Overload protection and 3D Light 250V,13A UK
7245315 ZC-1U06-K-G-UK 1U 6 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245316 ZC-1U08-UK 1U 8 way Cabinet PDU with 250V,13A UK
7245317 ZC-1U07-K-G-UK 1U 7 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245318 ZC-1U08-K-G-UL 1U 8 way Cabinet PDU with Switch and Overload protection 125V,15A UL
7245319 ZC-1.5U09-K-UL 1.5U 9 way Cabinet PDU with Switch 125V,15A UL
7245320 ZC-1.5U10-G-UL 1.5U 10 way Cabinet PDU with Overload protection 125V,15A UL
7245321 ZC-1.5U12-K-UL 1.5U 12 way Cabinet PDU with Switch 125V,15A UL
7245322 ZC-1U06-K-G-U-UL 1U 6 way Cabinet PDU with Switch and Overload protection and USB 125V,15A UL
7245323 ZC-1U10-K-C13 1U 10 way Cabinet PDU with Switch IEC 250V,10A C13
7245324 ZC-1U08-K-C13 1U 8 way Cabinet PDU with Switch IEC 250V,10A C13
7245325 ZC-1U06-K-G-FRA 1U 6 way Cabinet PDU with Switch and Overload protection 250V,16A France
7245326 ZC-1.5U08-FRA 1.5U 8 way Cabinet PDU 250V,16A France
7245327 ZC-1U12-K-G-GER 1U 12 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245328 ZC-1U08-K-G-GER 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245329 ZC-1.5U06-K-3D-GER 1.5U 6 way Cabinet PDU with Switch and 3D Light 250V,16A German
